Direct Metal Laser Sintering (DMLS) is a metal additive manufacturing process that builds parts layer by layer from metal powder. It is ideal for small, complex parts and is widely used to produce functional metal prototypes and end-use parts from a variety of alloys. The process offers design freedom that machining cannot match. But that freedom comes with its own constraints. This is the difference between a part that builds cleanly and one that warps, fails, or requires expensive rework.

What Is DMLS?

DMLS uses a laser to fuse metal powder into solid geometry. It adds material layer by layer until the part is complete. Because the material is built up rather than cut away, engineers can create internal features, complex curves, and consolidated assemblies that would be impractical to machine.

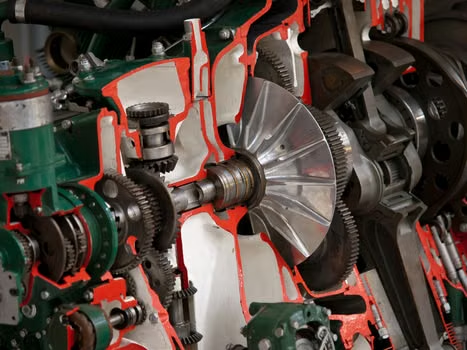

The process is well suited to small, complex parts. Typical applications include functional metal prototypes and end-use metal parts. A range of metal alloys is available, allowing designers to match material properties to the requirements of the application. DMLS is not a replacement for high-volume manufacturing. Trade-offs include limited build size and slower production speeds for high volumes. Its strength is in complexity and functionality.

Why DMLS Design Guidelines Matter

The design rules for DMLS are different from the rules for CNC machining or injection molding. In machining, material is removed from a solid block, so the main concerns are tool access and material removal. In DMLS, material is fused layer by layer, so the main concerns are thermal behavior, support, and layer adhesion.

A part that looks correct in CAD can still fail in the build chamber. Thin walls may not survive, unsupported overhangs may sag, internal channels may trap powder, and thermal stress can warp an entire part. DMLS design guidelines address these issues by covering the following critical considerations:

• Wall thickness
• Support strategy
• Overhang angles
• Internal channels
• Thermal stress management

Parts designed with these considerations in mind are manufacturable, mechanically robust, and dimensionally accurate.

Minimum Wall Thickness

Wall thickness is the first thing to evaluate in any DMLS part. Walls that are too thin may not fuse properly, may be damaged during support removal, or may not have enough strength for their intended load. Walls that are unnecessarily thick add material, build time, and cost.

The exact minimum wall thickness depends on the material, the wall height, and the orientation of the wall relative to the build direction. Service providers publish their own design limits, so check those limits early in the design process. As a general rule, keep wall thickness as uniform as possible. Sudden changes in cross-section create stress concentrations and uneven cooling, both of which can cause distortion.

Support Structures and Overhang Angles

Why Supports Are Needed

Support structures serve several purposes in a DMLS build. They anchor the part to the build platform, conduct heat away from the build area, and support features that would otherwise sag or collapse. Support removal is a standard part of post-processing, but the effort required depends heavily on the design.

Design parts to be as self-supporting as possible. Self-supporting designs use angles and geometry that build without additional support, which reduces material consumption and shortens the post-processing phase. When supports are unavoidable, make sure they are accessible for removal. Supports inside internal cavities or channels are extremely difficult, and sometimes impossible, to remove.

Overhang Angle Rules

Overhang angle is the angle between a feature and the vertical build direction. Features that are close to vertical build cleanly. Features that are too horizontal require support beneath them. Shallow overhangs, large flat roofs, and unsupported ledges are common problem areas.

The solution is to orient the part in the build volume so that demanding features are aligned with the build direction, and to add chamfered or angled faces instead of flat horizontal surfaces. When a horizontal surface is unavoidable, plan for support and for the post-processing work required to remove it.

Internal Channels

DMLS opens up new possibilities for internal channels, including cooling channels and fluid passages. These channels can follow curved paths that no conventional tool could produce. That capability is one of the main reasons to choose DMLS for complex components.

Internal channels also create design challenges. A channel whose roof is too horizontal will need support, and that support cannot be removed from inside the channel. The diameter, length, and orientation of the channel all affect whether it builds cleanly. Powder removal is another critical issue: all loose powder must be evacuated from the channel after the build. Design channels so that their roofs do not create unsupported overhangs, and provide a path for loose powder to escape.

Thermal Stress Management

DMLS is a thermal process. The laser melts and fuses metal powder, creating intense local heating followed by rapid cooling. This thermal cycling creates internal stress in the part. If that stress is not managed, the part can warp, crack, or detach from the build platform.

Thermal stress is managed through orientation, geometry, and supports. Uniform cross-sections heat and cool more evenly than variable ones. Symmetric geometry distributes stress better than asymmetric geometry. Large flat areas are particularly prone to distortion, so they should be oriented out of the horizontal plane or broken up with additional geometry.

The alloy also matters. Each material has its own thermal behavior, and a geometry that works in one alloy may need modification in another. Work with your service provider to identify potential stress issues before the build.

Tolerances and Accuracy

DMLS can produce accurate parts, but its tolerances are not the same as precision machining. According to the Xometry DMLS design guide, typical tolerances are +/-.005 inches plus .002 inches per inch. Fathom Manufacturing notes that parts can be created to within .005 inches (.127 mm) of the design specifications.

High-resolution DMLS builds at a layer thickness of 0.0008 inches (0.02 mm). That thin layer thickness supports fine detail and good dimensional resolution.

There is an important caveat: Xometry does not guarantee tolerances on the first attempt of a new design. The first build of a new part should be treated as a development step. Design with tolerance in mind, leave margin where possible, and expect to verify dimensions on the first article.

Part Size and Build Volume

DMLS build volumes are limited by the size of the build chamber. That limitation makes the process most appropriate for small, complex parts. Large parts may need to be split into multiple sections and joined after printing, which adds complexity and cost.

For high-volume production, DMLS is generally not the most economical choice. The process is better suited to functional prototypes, short runs, and parts where complexity justifies the cost. Keep the part within the build volume of the intended machine and plan for the entire workflow from build to finish.

Distance Between Features and Load-Bearing Features

DMLS design guidelines also cover the distance between features. Features that are placed too close together can merge, weld, or create narrow gaps that trap powder. Minimum feature spacing is defined by the process capabilities, so check the service provider’s guidelines when designing fine details and closely spaced geometries.

Load-bearing features are another consideration. Features that carry load during the build, such as a thin column supporting a large mass above it, need adequate cross-section to survive the build process. A feature that works in the final part may fail during printing if it is not designed for the loads of the build itself.

Pre- and Post-Processing Considerations

DMLS is not a single-step process. The complete workflow includes pre-processing, the build, and post-processing. Pre-processing involves orienting the part, generating support structures, and preparing the build file. Post-processing involves removing supports, removing loose powder, and often heat treatment, CNC machining, or surface finishing.

Design decisions affect every stage. A part with many fine features will take longer to clean. A part with a sealed internal cavity will trap powder. A part with hidden supports will be difficult to finish. Consider the full process when reviewing a DMLS design, not just whether the geometry can be printed.

Frequently Asked Questions

Here are answers to common questions engineers ask when applying DMLS design guidelines to their own parts.

What is the minimum wall thickness for DMLS?

Minimum wall thickness for DMLS depends on the material, the geometry, and the machine used to produce the part. Service providers publish their own limits, and those limits should be consulted before finalizing a design. As a general rule, thin walls should be avoided where they will carry load or where they create large unsupported spans. Keep wall thickness uniform wherever possible to reduce thermal stress and improve reliability.

What tolerances can DMLS hold?

Typical DMLS tolerances are +/-.005 inches plus .002 inches per inch, according to the Xometry design guide. Parts can be produced to within .005 inches (.127 mm) of the design specifications. High-resolution builds use a layer thickness of 0.0008 inches (0.02 mm). Tolerances are not guaranteed on the first attempt of a new design, so plan for iteration and verification.

Why do DMLS parts need support structures?

Support structures anchor the part to the build platform and carry away heat during the build. They prevent warping, distortion, and failure of unsupported features. However, supports add material and post-processing work. Designing features to be self-supporting, especially by controlling overhang angles, reduces the amount of support required and makes the part easier to finish.

How do I design internal channels for DMLS?

Internal channels benefit from the design freedom of DMLS but require attention to orientation, diameter, and roof geometry. Channel roofs that are too horizontal may need support that cannot be removed after the build. Design channels so that unsupported overhangs are avoided and so that all loose powder can be evacuated from the part after printing. Consult your service provider’s guidelines for specific channel limits.
